Products

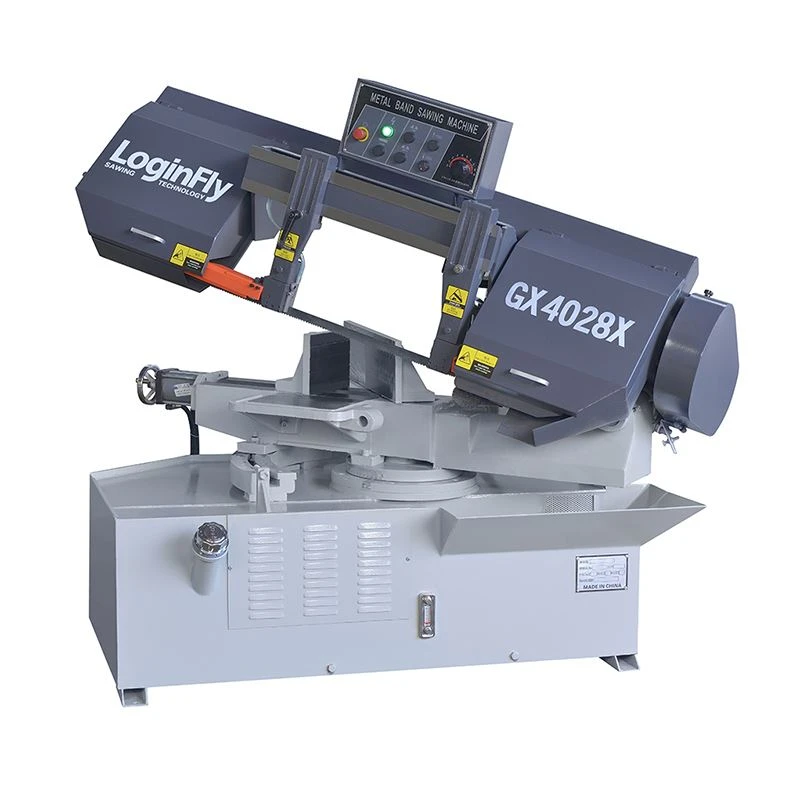

Band Saw Pipe Cutting Machine
Band Saw Pipe Cutting Machine is designed for straight and angle cutting of pipes, tubes, and hollow sections. It is widely used for material preparation in metal fabrication, construction, mechanical manufacturing, and steel processing applications requiring efficient batch cutting.
Features
Product Introduction
Band Saw Pipe Cutting Machine is designed for straight and angle cutting of pipes, tubes, and hollow sections. It is widely used for material preparation in metal fabrication, construction, mechanical manufacturing, and steel processing applications requiring efficient batch cutting.
Key Cutting Capabilities
Straight Pipe Cutting
Performs accurate straight cuts for pipe and tube preparation before welding, machining, or assembly.
Angle Cutting
Cuts workpieces at preset angles for frame fabrication, structural connections, and joint preparation.
Batch Length Cutting
Processes multiple workpieces to consistent lengths for downstream production operations.
Typical Materials & Workpieces
| Materials | Carbon Steel |
| Stainless Steel | |
| Alloy Steel | |
| Tool Steel | |
| Mild Steel | |
| Non-Ferrous Metals | |
| Workpieces | Carbon Steel |
| Stainless Steel | |
| Alloy Steel | |
| Tool Steel | |
| Mild Steel | |
| Non-Ferrous Metals |
Performance Advantages
Reduced Material Waste through controlled sawing operations.
Consistent Cut Quality for improved downstream processing efficiency.
Hydraulic Clamping helps secure workpieces during cutting operations.
Versatile Angle Cutting supports a wider range of fabrication requirements.
Continuous Production Capability suitable for small-batch and medium-volume workloads.
Low Blade Kerf Loss compared with many conventional cutting methods.
Product Specifications
|
Technical Specifications |
GX4028X Angle band saw machine |
|
Cutting capacity 0°(round) |
300mm |
|
Cutting capacity 45°(round) |
300*350mm |
|
Cutting capacity 0°(square) |
240mm |
|
Cutting capacity 45°(square) |
240*130mm |
|
Blade speed(m/min) |
22/35/50/75 |
|
Blade size(mm) |
34*1.1*3700 |
|
Main Motor(kw) |
2.2 |
|
Hydraulic Motor(kw) |
0.55 |
|
Coolant pump(km) |
0.06 |
|
Work piece Clamping |
Hydraulic Vise |
|
Blade Tension |
Manual |
|
Main Drive |
Worm wheel drive |
|
Material feed |
Manual |
|
Machine size |
1950*1500*1400mm |
|
Machine weight |
720kg |
Standard Equipment
|
Blade cleaning brush |
YES |
|
Working light |
YES |
|
One piece of bi-metal saw blade |
YES |
|
One set of tools with tool box |
YES |
|
Operation manual |
YES |
|
Roller rack |
YES |
|
Saw frame height selector gauge |
YES |
Industry Applications
Metal Fabrication
Cuts pipes, tubes, and structural sections for welding and assembly operations.
Construction & Steel Structures
Prepares steel members used in building frameworks and infrastructure projects.
Mechanical Manufacturing
Processes raw materials for machinery components and fabricated assemblies.
Energy & Utility Equipment
Cuts piping materials used in industrial, utility, and processing systems.
Steel Service Centers
Handles stock material preparation and order-based cutting operations.
Customization Options
- Cutting capacity options
- Manual, semi-automatic, or automatic operation
- Different angle-cutting ranges
- Blade speed configurations
- Hydraulic or manual blade tensioning
- Roller table length and quantity
- Material feeding system options
- Electrical voltage customization
- Safety guarding configurations
- OEM branding and machine color
